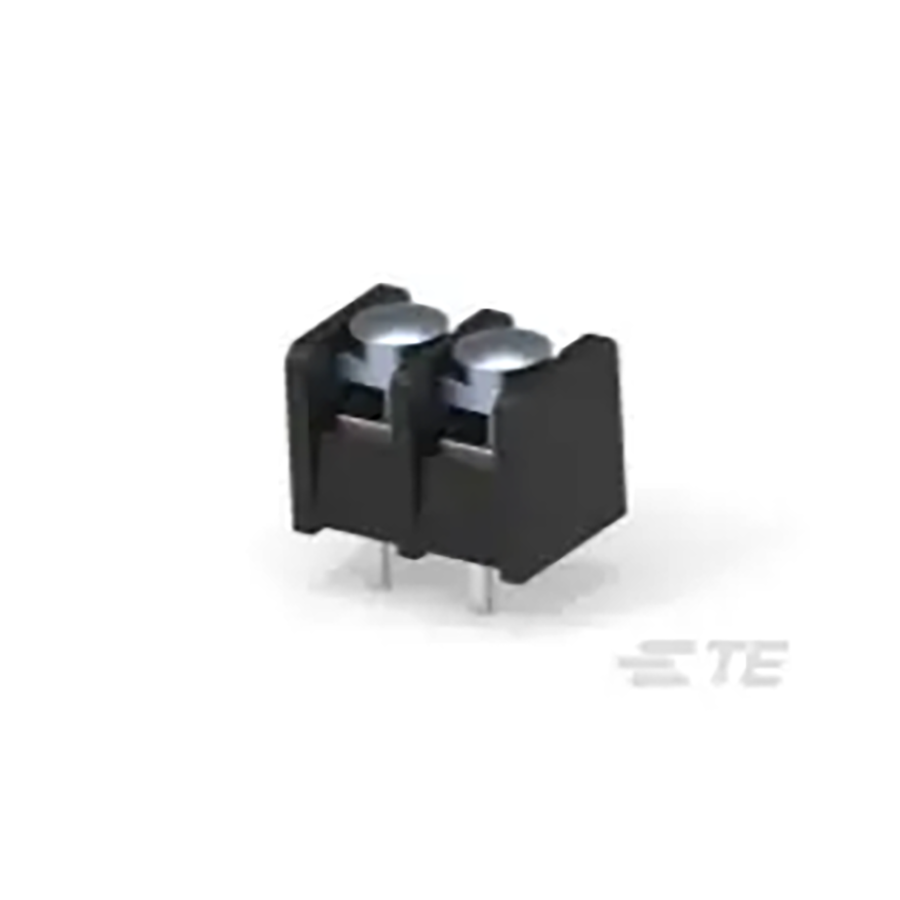

2-1437667-4
Manufacturer:
TE Connectivity
Mfr.Part #:
2-1437667-4
Datasheet:
Description:
Terminal Blocks Through Hole 2 8.26 mm 20 A 150 V 22 AWG to 12 AWG
| Parameter | Value |
|---|---|
| Length | 18.161 mm |
| Termination | Screw |
| Packaging | Bulk |
| Voltage Rating | 150 V |
| Depth | 12.7 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 150 V |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 8.26 mm |
| Current Rating | 20 A |
| Max Current Rating | 20 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Number of Circuits | 2 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Number of Contacts | 2 |
| ELV | Compliant |
| Terminal Material | Steel |
| Number of Poles | 2 |
| Connector Type | Terminal Block |
| Wire/Cable Gauge | 12 AWG |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Insulation Material | Thermoplastic |
| Housing Material | Nylon |
| Number of Levels | 1 |
| Wire Gauge (Max) | 12 AWG |
| Wire Gauge (Min) | 12 AWG |
| Housing Color | Black |
| Number of Wire Entries | 2 |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Connection Method | Screw |
| Wire Gauge Range | 22 AWG to 12 AWG |
